Technical Specification
System
Main Processor                Embedded processor
Operating System            Embedded linux
Face Detection
Face Detection only for the 1st channel,only support analog camera
IVS Analytics
IVS 1 channel, 10 IVS for each channel, only support analog
camera
Audio and Video

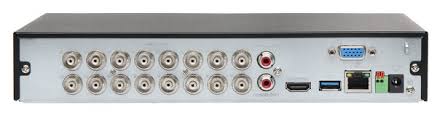

Analog Camera Input 16 channels,BNC
HDCVI Camera Input 5 MP; 4 MP; 3 MP; 1080p; 720p
AHD Camera Input 5 MP; 4 MP; 3 MP; 1080p; 720p
TVI Camera Input 5 MP; 4 MP; 3 MP; 1080p; 720p
CVBS Camera Input PAL/NTSC
IP Camera Input 16+8 channels, each channel up to 4MP
Audio Input 1 RCA
Audio Output 1 RCA
Two-way Talk Reuse audio in/out, RCA

Video Compression H.264+/H.264
Resolution 5 MP, 4 MP, 3 MP, 1080p, 720p, 960H, D1, CIF, BCIF, QCIF
Record Rate
Main stream: All channel 5M-N(1fps–10fps);
4M-N/1080p (1 fps–15 fps); 720p/960H/D1/CIF (1
fps–25/30 fps);
Sub steram: 960H(1 fps–15 fps); 1/CIF(1 fps–25/30 fps)
Record Mode
Manual, Schedule (General, Continuous), MD (Video
detection: Motion Detection, Video Loss, Tampering),
Alarm, Stop
Bit Rate 32 Kbps–6144 Kbps Per Channel
Audio Sample Rate 8 KHz, 16 bit Per Channel
Audio Bit Rate 64 Kbps Per Channel
