Product details
Product Overview

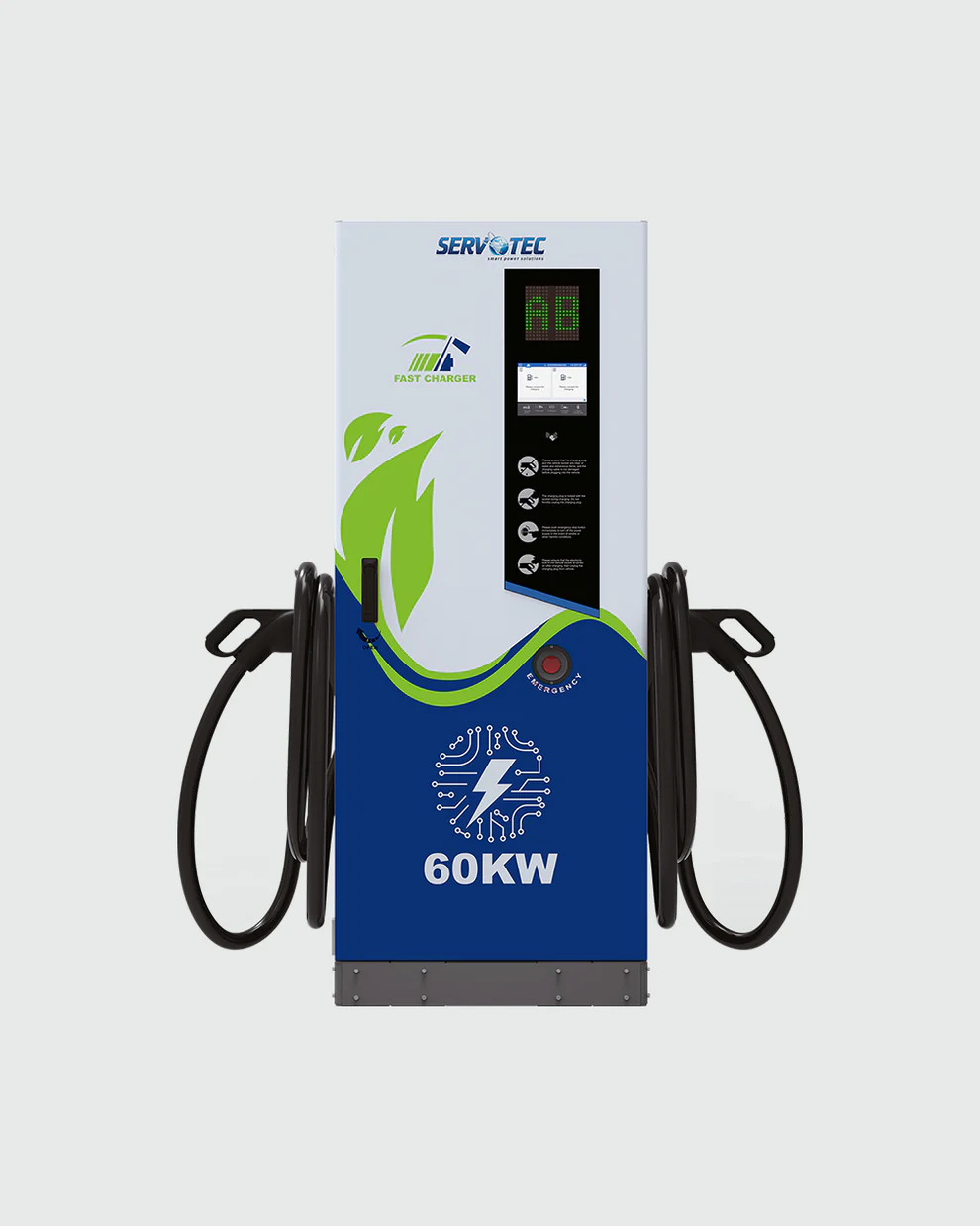

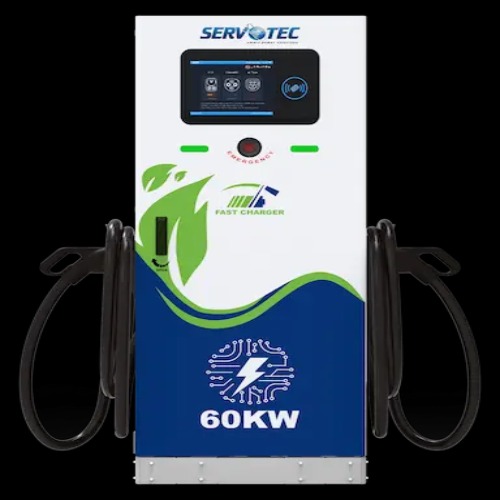

Our 60 kW DC charger is fully compatible CCS-2 Connectors, facilitating versatile charging solutions across various locations, including professional environments, parking facilities, healthcare institutions, retail centers, hospitality venues, cultural sites, public parks, and major transportation routes. This system is designed to provide rapid and intelligent charging experiences for electric vehicle users.
Technical Specifications
- Powerful Performance
- Rating: 60 kW
- Input Voltage Range: 3-Phase, 415 VAC (±10%), 50Hz
- Output Parameters
- Voltage: 150-1000V DC
- DC Current: 200 A (maximum)
- Power Distribution: Capability for splitting the power output between two charging guns.
- Output Port: Dual CCS 2 Charging connectors.
User Authentication and Interface
- User-Friendly Authentication: Seamless authentication is enabled through RFID, QR Code Scanning, and an OCPP 1.6 compliant Mobile Application Interface, ensuring a streamlined charging process.
- Offline Capability: Offline authentication is available upon customer request.
Connectivity
- Advanced Connectivity: Interface options include 4G/5G, Ethernet, and Wi-Fi to ensure reliable communication.
Display
- Touchscreen Interface: A 7-inch or larger Industrial Grade LCD is employed, displaying critical information such as KWh consumed, Date & Time, Total KWh, Output DC Voltage & Amperage, Event logs, Error notifications, Price per unit, and the total transaction amount.
